Toshiba’s New Image Sensor: A Leap Forward for High-Speed Inspection

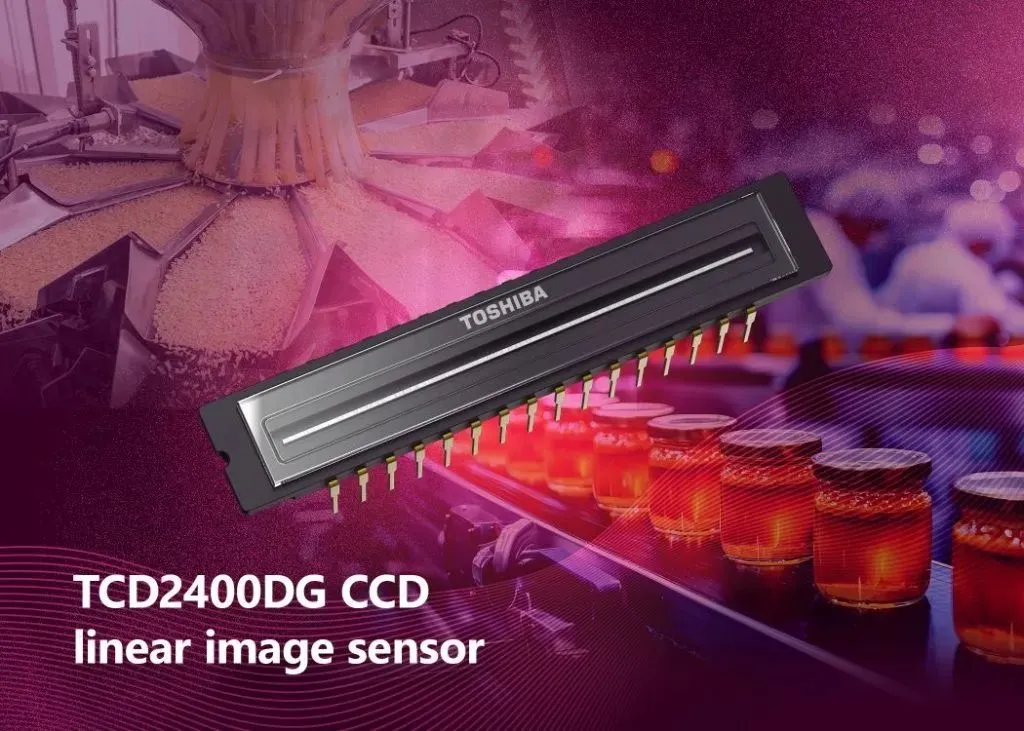

Toshiba Electronic Devices & Storage Corporation has unveiled the TCD2400DG, a cutting-edge CCD linear image sensor poised to significantly enhance the speed and precision of automated optical inspection systems. This new sensor, designed for line scan cameras, addresses the growing demands of industries requiring high-throughput, high-accuracy visual assessments.
Faster Readout Speeds for Demanding Applications
The TCD2400DG boasts a maximum data rate of 100MHz, more than double the readout speed of Toshiba’s previous TCD2564DG model. This translates to a maximum line rate of 22.7kHz, enabling inspection systems to process vast amounts of image data with unprecedented rapidity. This capability is particularly crucial for identifying fast-moving objects in applications like food sorting and industrial manufacturing quality control.
The increased speed isn’t just about processing more items; it’s about improving the quality of inspection. Faster data acquisition minimizes motion blur and allows for more accurate detection of defects, even at high conveyor belt speeds.
High-Resolution Colour Capture Without Compromise
Unlike traditional image sensors that rely on colour interpolation techniques like Bayer element arrays, the TCD2400DG features 4096 independent elements for each of the three RGB colour channels, arranged in three independent lines. This direct acquisition of high-resolution colour images eliminates the need for interpolation, resulting in more accurate and reliable colour-based inspections. Immediate processing is enabled, critical for applications demanding rapid decision-making.
This architecture is a significant advantage in industries like food processing, where colour is a key indicator of quality, and ripeness. For example, accurately sorting fruits and vegetables based on subtle colour variations becomes far more efficient and reliable.
Simplified System Design and Reduced Costs
A key innovation of the TCD2400DG is the integration of the timing generator and CCD driver circuit, components that were previously external. This streamlined design reduces the number of signal lines required, simplifying wiring and overall system architecture. The result is a lower bill of materials (BOM), faster development cycles, and reduced susceptibility to electromagnetic interference (EMI).
Mitigating EMI is a critical consideration in high-speed systems. By reducing the complexity of the signal path, Toshiba has addressed a common challenge faced by engineers designing these types of applications.
The Future of Linear Image Sensors
The TCD2400DG represents a significant step forward in linear image sensor technology. The trend towards higher speeds, higher resolutions, and more integrated designs is likely to continue as industries demand increasingly sophisticated inspection capabilities. Future developments may include even faster data rates, improved sensitivity, and the integration of artificial intelligence (AI) for real-time defect analysis.
The demand for automated inspection systems is growing across a wide range of industries, driven by factors such as increasing labour costs, stricter quality control standards, and the need for greater efficiency. Sensors like the TCD2400DG are playing a vital role in enabling this automation.
Frequently Asked Questions
- What is a CCD linear image sensor? A CCD (Charge-Coupled Device) linear image sensor is a type of image sensor that captures images one line at a time, making it ideal for inspecting moving objects.
- What are the primary applications of the TCD2400DG? The sensor is designed for high-speed, high-precision inspection tasks such as colour sorting in food processing and quality control in industrial manufacturing.
- What is the benefit of having integrated timing and driver circuits? Integration simplifies system design, reduces the bill of materials, and minimizes electromagnetic interference.
- How much faster is the TCD2400DG compared to the previous model? The TCD2400DG achieves more than twice the readout speed of the TCD2564DG.
Pro Tip: When evaluating image sensors for your application, consider not only the resolution and speed but also the ease of integration and the potential for future upgrades.
