Scientists have engineered unsinkable metal tubes.
The superhydrophobic design could lead to resilient ships, floating platforms and renewable energy innovations.
More than a century after the Titanic sank, engineers still have hopes of someday creating “unsinkable” ships. In a step toward reaching that lofty goal, researchers at the University of Rochester’s Institute of Optics have developed a new process that turns ordinary metal tubes unsinkable—meaning they will stay afloat no matter how long they are forced into water or how heavily they are damaged.

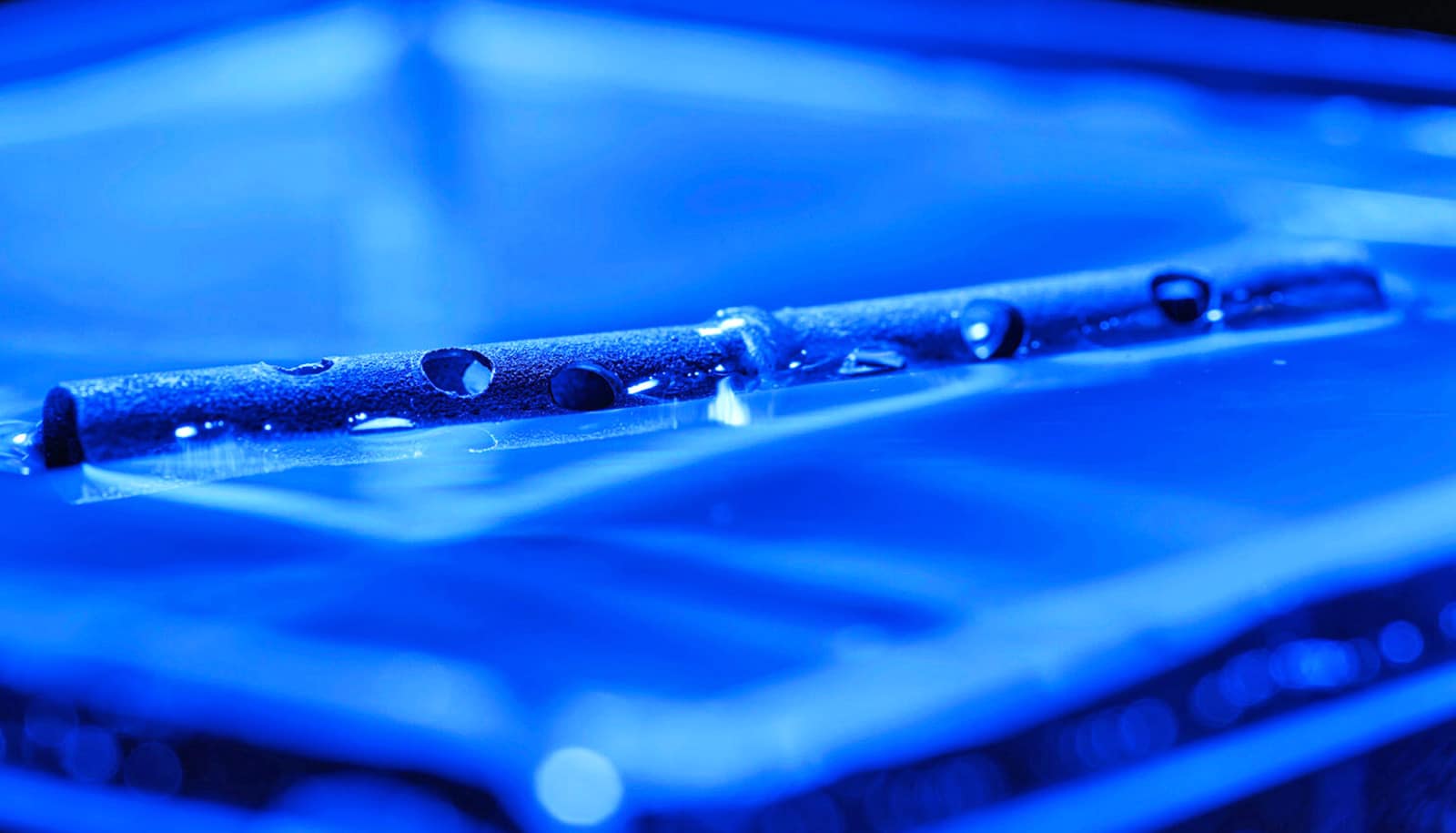

Chunlei Guo, a professor of optics and of physics and a senior scientist at URochester’s Laboratory for Laser Energetics, and his team describe their process for creating aluminum tubes with remarkable floating abilities in a study published in Advanced Functional Materials. By etching the interior of aluminum tubes, the researchers create micro- and nano-pits on the surface that turn it superhydrophobic, repelling water and staying dry.
When the treated tube enters water, the superhydrophobic surface traps a stable bubble of air inside the tube, which prevents the tube from getting waterlogged, and sinking. The mechanism is similar to how diving bell spiders trap an air bubble to stay buoyant underwater or how fire ants form floating rafts with their hydrophobic bodies.
“Importantly, we added a divider to the middle of the tube so that even if you push it vertically into the water, the bubble of air remains trapped inside and the tube retains its floating ability,” says Guo.
Guo and his lab first demonstrated superhydrophobic floating devices in 2019, featuring two superhydrophobic disks that were sealed together to create their buoyancy. But the current tube design simplifies and improves the technology in several key areas. The disks that the researchers previously developed could lose their ability to float when turned at extreme angles, but the tubes are resilient against turbulent conditions like those found at sea.
“We tested them in some really rough environments for weeks at a time and found no degradation to their buoyancy,” says Guo.
“You can poke huge holes in them, and we showed that even if you severely damage the tubes with as many holes as you can punch, they still float.”
Multiple tubes can be linked together to create rafts that could be the basis for ships, buoys, and floating platforms. In lab experiments, the team tested the design using tubes of varying lengths, up to almost half a meter, and Guo says the technology could be easily scaled to the larger sizes needed for load-bearing floating devices.
The researchers likewise showed how rafts made from superhydrophobic tubes could be used to harvest water waves to generate electricity, offering a promising renewable energy application.
This project was supported by the National Science Foundation, the Bill and Melinda Gates Foundation, and URochester’s Goergen Institute for Data Science and Artificial Intelligence.
Source: University of Rochester
The Future of Flotation: Beyond the Unsinkable Tube
The development of these unsinkable metal tubes represents a significant leap forward in materials science, with implications extending far beyond simply preventing another Titanic. The core principle – creating superhydrophobic surfaces – is poised to revolutionize several industries.
Resilient Maritime Infrastructure
The most immediate application lies in maritime engineering. Current ship hulls are designed for buoyancy, but are still vulnerable to damage and flooding. Integrating this superhydrophobic technology could create hulls that remain afloat even with significant breaches, dramatically improving ship safety and reducing the risk of catastrophic loss. This could also lead to more durable and cost-effective buoy designs for navigation and environmental monitoring.
Floating Cities and Infrastructure
As coastal populations grow and sea levels rise, the concept of floating cities and infrastructure is gaining traction. These tubes, linked together, offer a potentially viable building block for such projects. The ability to create stable, buoyant platforms, even in rough seas, is crucial for the feasibility of these ambitious undertakings. The scalability of the technology, as demonstrated by the researchers, is a key advantage.
Renewable Energy Harvesting
The research highlights a particularly exciting application: wave energy conversion. Rafts constructed from these tubes can effectively harness the power of ocean waves to generate electricity. This offers a clean, sustainable energy source, particularly valuable for coastal communities. The potential for large-scale wave energy farms utilizing this technology is substantial.
Beyond Aluminum: Expanding Material Applications
While the initial research focuses on aluminum, the etching process used to create the superhydrophobic surface could potentially be adapted for other metals and materials. This opens up possibilities for creating unsinkable structures from a wider range of resources, tailoring the material to specific application requirements.
Challenges and Future Research
Despite the promising results, several challenges remain. The long-term durability of the superhydrophobic coating in harsh marine environments needs further investigation. The cost of the etching process and its scalability for large-scale production are also important considerations. Further research will focus on optimizing the etching process, exploring alternative materials, and developing robust coatings that can withstand prolonged exposure to saltwater and biofouling.
Frequently Asked Questions
What makes these tubes unsinkable?
The tubes are treated to become superhydrophobic, meaning they repel water. This creates an air bubble that remains trapped inside, providing buoyancy even when the tube is damaged.
How durable is the superhydrophobic coating?
Researchers have tested the tubes in rough conditions for weeks with no degradation of buoyancy, but long-term durability requires further study.
Could this technology be used to make existing ships unsinkable?
Potentially, yes. Applying the superhydrophobic coating to existing hulls could significantly enhance their resilience to flooding.
What are the potential environmental impacts of this technology?
The environmental impact will depend on the materials used and the manufacturing process. Further research is needed to assess and minimize any potential risks.
Pro Tip: Superhydrophobic materials aren’t just limited to marine applications. They’re also being explored for self-cleaning surfaces, anti-icing coatings, and even medical devices.
