The Future of Light: How 2D Materials Are Revolutionizing Photonics
The quest for smaller, faster, and more efficient optoelectronic devices has led researchers to a breakthrough in two-dimensional (2D) materials. By integrating monolayer molybdenum disulfide (MoS2) with specialized gate electrodes, scientists have unlocked a new way to manipulate light at the nanoscale, paving the way for the next generation of on-chip integrated photonics.
The Power of Atomic-Scale Engineering
Transition-metal dichalcogenides, like monolayer MoS2, are prized for their strong excitonic responses and gate-tunable optical properties. However, scaling these materials for practical use has historically been a challenge. Recent advancements in wafer-scale synthesis—using chemical vapor deposition (CVD) on sapphire substrates—have allowed for the creation of uniform, high-quality films that maintain low defect densities comparable to mechanically exfoliated samples.
Enhancing Light-Matter Interactions with Plasmonics
To truly harness the potential of these 2D semiconductors, researchers are turning to nanoparticle-on-mirror (NPoM) plasmonic cavities. By integrating gold nanodisc arrays onto the MoS2 platform, the light-matter interaction is dramatically amplified. This setup facilitates efficient plasmon–trion coupling, where the Purcell effect enhances radiative recombination.
The results are striking: these resonant cavities can achieve emission enhancements of up to 46-fold. By precisely tuning the diameter of the nanodiscs, developers can align the plasmon resonance with the excitonic states of the MoS2, creating a highly tunable and efficient light source.
Why This Matters for Future Tech
This technology is not just a laboratory curiosity; We see a foundation for practical applications in:
- Visible Light Communication: Enabling faster, high-bandwidth data transmission.
- Dynamic Display Technologies: Creating ultra-thin, energy-efficient screens.
- On-Chip Photonics: Integrating light-emitting platforms directly onto silicon-based circuits.
With a tunable emission area exceeding 5,000 μm², this approach represents a significant leap forward in scaling 2D optoelectronic devices for industrial use.
Frequently Asked Questions (FAQ)
- What makes MoS2 suitable for optoelectronics?
- MoS2 has a direct bandgap and strong excitonic responses, which allow it to emit and detect light efficiently when scaled to a single atomic layer.

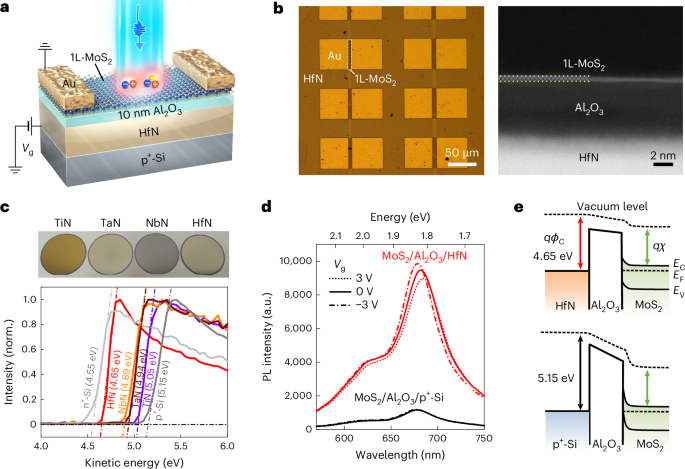

- Why is HfN used as a gate electrode?
- Hafnium nitride provides a work function that aligns better with MoS2 than traditional silicon, minimizing undesirable band bending and allowing for more efficient electrostatic charge accumulation.
- Are these devices durable?
- Yes, current prototypes have demonstrated robust performance at room temperature, maintaining stable light output with minimal degradation over extended periods.
