According to researchers developing advanced materials for industrial infrastructure, KZnP3O9 crystal and glass corrosion inhibitors offer high-performance protection for carbon steel Q235 in hydrochloric acid solutions. The KZnP3O9 crystal demonstrates superior corrosion resistance over its glass counterpart, achieving an electrochemical impedance of 525 Ω·cm² and a corrosion inhibition efficiency of 95%.
Atomic-Scale Mechanisms of KZnP3O9 Crystal Inhibitors
Understanding the atomic-scale mechanisms of corrosion resistance is critical for both engineering and scientific communities, according to recent materials science research. Molecular dynamics (MD) simulations reveal that the metaphosphate ion possesses a higher adsorption energy on the Q235 carbon steel substrate than orthophosphoric acid and pyrophosphoric acid.
Furthermore, research data shows that iron ions are indirectly adsorbed through their interaction with the phosphate ion. This interaction forms a compact protective corrosion product film characterized by higher time dependence of impedance and lower areal and linear roughness on the steel surface.
Pro Tip: When evaluating inorganic phosphate corrosion inhibitors for acidic environments, look at the structural bridging of the PO4 tetrahedron. Crystals featuring double-bridging oxygen provide significantly higher adsorption energy than isolated structures found in glass counterparts.
Crystal Versus Glass: Structural Differences in Corrosion Protection

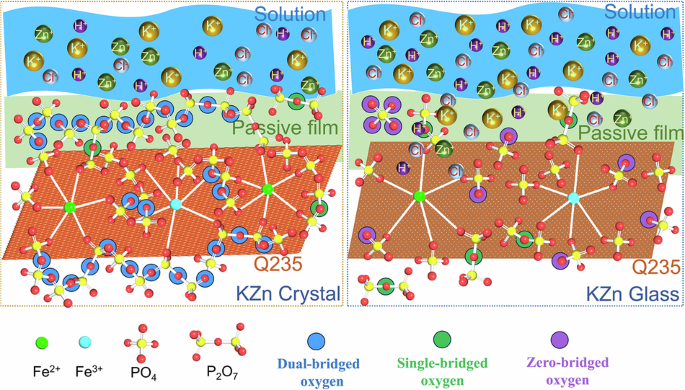

Comparative analysis between crystal and glass forms highlights distinct structural advantages. The KZnP3O9 crystal forms an infinite P3O9 chain or ring driven by the double-bridging oxygen of a single PO4 tetrahedron. This configuration yields maximum adsorption energy on the metal substrate.
In contrast, the glass counterpart features zero- or single-bridging oxygen within each PO4 tetrahedron, resulting in isolated PO4 or P2O7 structures with lower adsorption energy. This structural divergence explains why the crystalline version outperforms the glass variant in harsh HCl solutions.
Did you know? The KZnP3O9 crystal achieves a 95% corrosion inhibition efficiency, marking it as a top performer among tested inorganic phosphate inhibitors for carbon steel Q235.
Frequently Asked Questions
What is the primary advantage of the KZnP3O9 crystal over glass inhibitors?
The KZnP3O9 crystal provides superior corrosion resistance due to an infinite P3O9 chain or ring structure formed by double-bridging oxygen, yielding higher adsorption energy on the Q235 substrate.
How does the metaphosphate ion interact with the Q235 substrate?
According to molecular dynamics simulations, the metaphosphate ion exhibits high adsorption energy on the Q235 substrate, while iron ions are indirectly adsorbed through their interaction with the phosphate ion.
What level of corrosion inhibition efficiency does the crystal achieve?
The KZnP3O9 crystal achieves a corrosion inhibition efficiency of 95% alongside an electrochemical impedance of 525 Ω·cm² in HCl solution.
