According to NASA, the Lockheed SR-71 Blackbird served as the flying test bed for the linear aerospike experiment, or LASRE, in 1997, carrying a seven-ton pod to the upper stratosphere to validate computational fluid dynamics for single-stage-to-orbit spacecraft. The collaborative effort between NASA’s Dryden Flight Research Center and Lockheed Martin Skunk Works aimed to support the VentureStar program, which sought to build the world’s first single-stage-to-orbit vehicle.
The Flying Wind Tunnel Approach

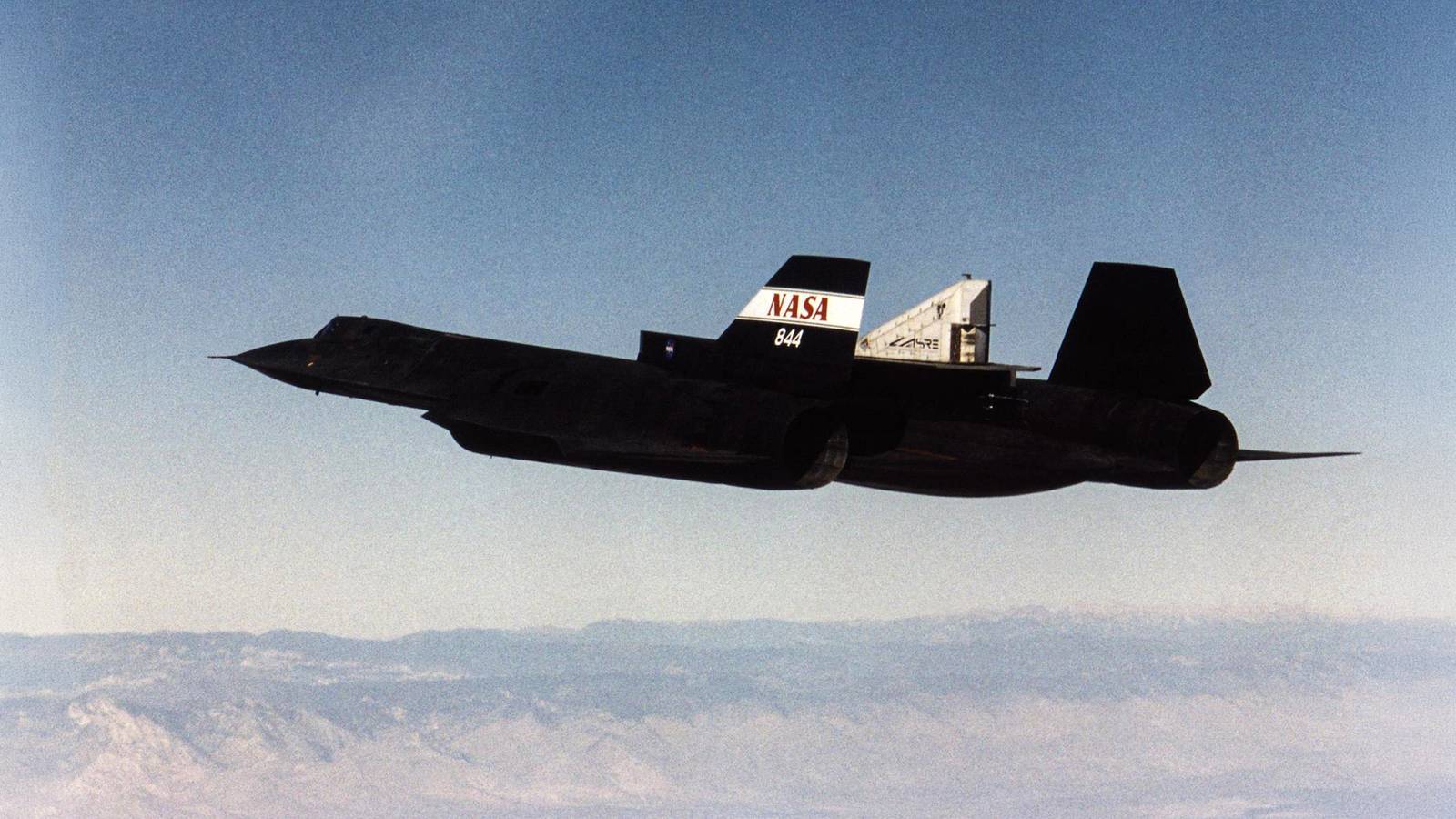

Instead of using a static wind tunnel, engineers mounted a 41-foot-long, half-scale model of the X-33 on top of SR-71 Tail Number 844. According to NASA documentation, the pod weighed 14,300 pounds and featured an eight-cell linear aerospike engine built into its tail.
The test apparatus carried its own live propellants, including gaseous hydrogen and liquid oxygen. It also utilized water to regeneratively cool the engine fences and a high-pressure helium system to purge the lines.
Testing proceeded through careful stages to manage the massive aerodynamic drag of the payload. Initial flights evaluated basic aircraft stability at transonic and supersonic speeds, followed by checks of cryogenic fuel systems under high-G and high-vibration environments. Low-power ignition trials eventually followed, proving the engine could light reliably at high altitudes without melting the tail of the SR-71.
Did You Know?
The LASRE mission oversaw one of the last flights ever conducted by a Blackbird, as the premier supersonic jet of the Cold War spent its final operational hours birthing the propulsion technology of the 21st century.
Supersonic Data Collection and Flight Limits
The SR-71 flew a total of seven research flights carrying the LASRE pod, collecting data up to Mach 1.8 and altitudes of 33,000 feet, according to NASA records. The transonic regime presented the toughest hurdle, where shockwaves attach to the airframe and modern supercomputers still struggle to calculate boundary-layer transitions smoothly.
Telemetry revealed unexpected pockets of massive aerodynamic drag where air and rocket exhaust collided behind the vehicle, contrasting with computer predictions of smooth airflow. However, engineers never executed a true, full-power sustained test run in flight. Persistent, minor liquid oxygen leaks and electrical anomalies in the pod’s plumbing prompted NASA and Lockheed to avoid risking the irreplaceable SR-71 asset to a midair explosion.
Cancellation of VentureStar and the X-33
The broader X-33 program met its end in March 2001, when NASA officially canceled the project after four years of development and $1.25 billion in investment, according to Wired. Critical design flaws surfaced when the testbed’s outer skin ruptured during a pressure test of its composite liquid-hydrogen tank.
Lockheed Martin proposed replacing the carbon composite tanks with aluminum-lithium alloy tanks, but NASA and Congress rejected the pivot. According to agency assessments, the core purpose of the billion-dollar project was to force a breakthrough in composite tank technology, making a heavy aluminum spaceplane an unacceptable regression of taxpayer funds. Simultaneously, commercial satellite launch markets suffered financial distress, leading Lockheed Martin to conclude that VentureStar could not turn a profit without total government backing. NASA terminated the initiative to redirect funds into the Space Launch Initiative.
Modern Successors of the Aerospike Engine
Frequently Asked Questions
What was the purpose of the LASRE project?
The linear aerospike experiment tested how a rocket’s exhaust interacts with the lifting body of a spaceship at supersonic speeds by mounting a scale model on top of an SR-71 Blackbird.
Why was the X-33 program canceled?
NASA canceled the project in 2001 after composite liquid-hydrogen tanks ruptured during pressure tests and financial viability concerns arose following shifts in the commercial satellite market.
Did the SR-71 ever perform a full-power rocket burn with the LASRE pod?
No. Due to persistent liquid oxygen leaks and electrical anomalies, teams avoided full-power flight tests to protect the irreplaceable SR-71 aircraft.
