The Engineering Behind the Bugatti Tourbillon’s V16 Powertrain
The Bugatti Tourbillon features a bespoke 8.3-liter, 90-degree V16 engine developed in partnership with Cosworth, producing 986 hp and 664 lb-ft of torque. When paired with three electric motors, the hybrid powertrain delivers a combined 1,800 hp, allowing the hypercar to reach 0-60 mph in 2.0 seconds and a top speed of 276 mph with the Speed Key engaged.
How Did Bugatti Fit the V16 Into the Chassis?

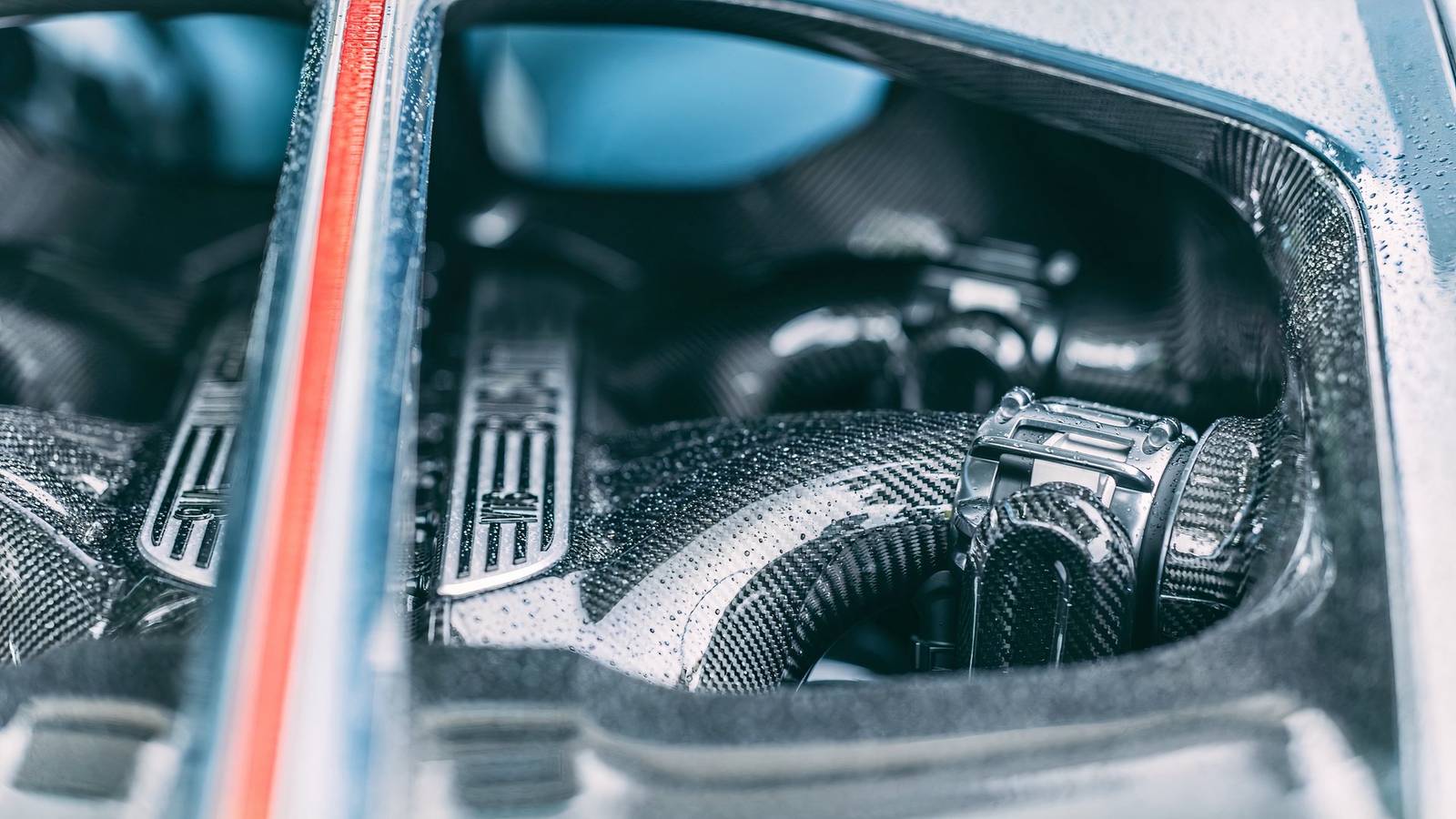

Space constraints dictated the design of the Tourbillon’s engine bay. The naturally aspirated V16 measures nearly one meter in length, leaving almost no room between the cockpit and the rear wheels. According to Bugatti, the engineering team bypassed the bulky, quad-turbo W16 configuration used in the Chiron in favor of a slimmer, naturally aspirated V-shape.
To reduce weight and physical dimensions, the engineers implemented several high-tech solutions:
- Plasma-coated cylinders: This process replaced traditional cylinder liners, saving 12mm of space per cylinder and reducing total weight.
- Ancillary outsourcing: Components like the alternator and starter were removed; their functions are handled by the hybrid electric system.
- Weight-saving materials: The engine utilizes titanium connecting rods and a carbon fiber inlet plenum, resulting in a total engine weight of 556 lbs.
What Role Did Cosworth Play in the Development?
Cosworth leveraged its experience from the Aston Martin Valkyrie project to assist Bugatti. For the Valkyrie’s 6.5-liter V12, Cosworth had already perfected the use of aerospace-grade alloy billets and plasma cylinder coatings to minimize size. By applying these techniques to the Tourbillon’s V16, the firm ensured the engine maintained high-performance output despite its reduced footprint. To manage the vibration inherent in a large V16, the team incorporated a Formula 1-inspired hybrid timing system that uses both gears and a timing chain.
How Does the V16 Compare to Historical Prototypes?
While the V16 is rare, it has appeared in both production and concept forms throughout automotive history. The 1930 Cadillac V-16 remains the most notable production example, though it was eventually discontinued due to World War II-era market conditions.
In the 1980s, BMW explored a V16 with the “Goldfisch” 7 Series prototype. That engine, a 6.7-liter unit, proved difficult to package; its size forced engineers to relocate the cooling system to the trunk, rendering the car impractical for cargo. Similarly, Rolls-Royce experimented with V16 concepts in the early 2000s, including a one-off Phantom featured in the film Johnny English Reborn at the request of actor Rowan Atkinson. Unlike those earlier efforts, the Tourbillon represents a successful integration of a massive engine into a modern, high-performance hybrid architecture.
Frequently Asked Questions
What is the top speed of the Bugatti Tourbillon?
The car reaches 236 mph in standard configuration, but the use of a Speed Key unlocks a maximum speed of 276 mph.
Why did Bugatti choose a naturally aspirated V16 instead of a W16?
The V16 design is slimmer than the previous W16, which allowed engineers to fit the engine into the tight mid-engine layout while maintaining the necessary performance metrics.
How does the hybrid system contribute to the engine’s size?
By replacing traditional heavy components like the alternator and starter with the electric motor system, the overall engine weight was reduced to 556 lbs.
Who helped design the Tourbillon’s engine?
Bugatti collaborated with the British engineering firm Cosworth, which also designed the V12 engine for the Aston Martin Valkyrie.
