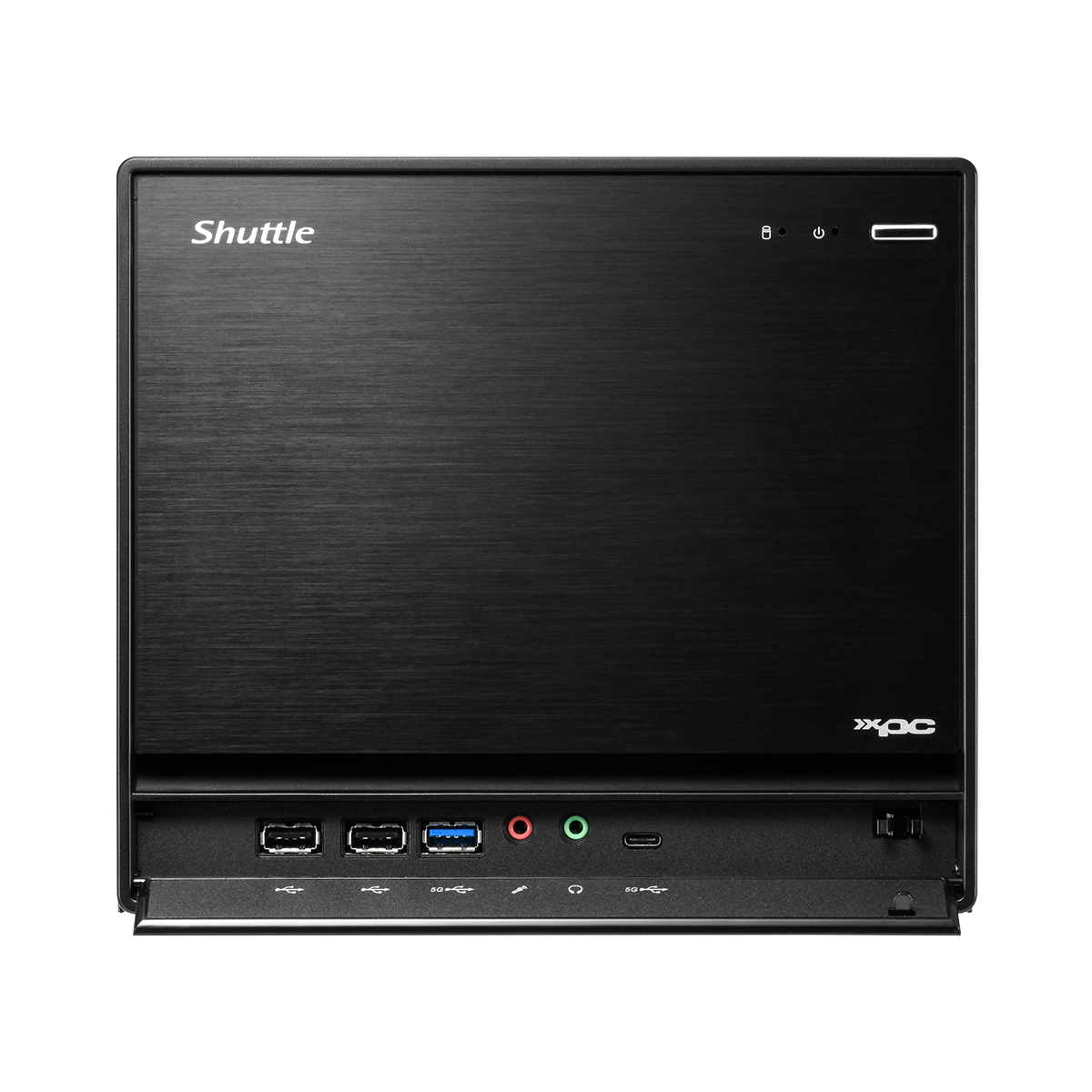

Shuttle has launched the XPC Barebone SB860R8, a 14-liter compact workstation designed for Intel’s Core Ultra 200 series processors. The system, which supports the LGA1851 socket and Arrow Lake-S architecture, provides high-density storage and expansion capabilities, including space for four 3.5-inch hard drives and PCIe Gen 5 connectivity. It is currently available for purchase starting at €483 before VAT.
How does the SB860R8 handle modern workstation demands?
The SB860R8 addresses the trend of shrinking workstation footprints by packing server-grade storage support into a small form factor (SFF) chassis. According to Shuttle, the unit accommodates four internal 3.5-inch SATA drives, supporting RAID 0, 1, 5, and 10 configurations. This capacity allows the device to function as a localized NAS or a compact server for small business environments.
Processing power is provided by Intel’s Core Ultra 9, 7, and 5 desktop chips, with the system capable of handling up to 125W TDP. Memory capacity is similarly robust, with four DDR5 slots supporting up to 192GB of RAM. The internal cooling setup utilizes ten heatpipes and three temperature-controlled fans to manage thermal output from these high-performance processors.
What connectivity options are available for multi-display setups?
Shuttle has prioritized display versatility by including two HDMI ports and two DisplayPort outputs. One of the HDMI ports adheres to the 2.1 standard, supporting resolutions up to 8K. These outputs are complemented by dual 2.5GbE LAN ports, which are powered by Intel i226-LM controllers, providing high-bandwidth networking for data-intensive applications.
Expansion is further supported by an additional PCIe Gen 4 x4 slot, alongside two M.2 NVMe slots. One of these NVMe slots is designated for PCIe Gen 5 x4, ensuring compatibility with the fastest current-generation SSDs. An extra M.2 2230 slot is included specifically for optional Wi-Fi modules, allowing for clean, cable-free network integration.
How does this model compare to previous SFF releases?
The move to the LGA1851 socket and the Arrow Lake-S platform signals a shift toward higher efficiency in compact computing. While earlier Shuttle cubes were often limited by thermal constraints, the integrated 500W 80 Plus Gold power supply and the ten-heatpipe cooling system are tailored to meet the specific power requirements of the latest Intel Core Ultra generation. Unlike many entry-level mini-PCs that rely on laptop-grade components, the SB860R8 maintains the desktop-class performance expected of traditional tower workstations but in a significantly reduced 14-liter volume.
Frequently Asked Questions
Does the SB860R8 come with a processor installed?
No, the XPC Barebone SB860R8 is sold as a barebones system. Users must purchase and install their own Intel Core Ultra 200 series processor, DDR5 memory, and storage drives.
Can this system be used for professional video editing?
Yes. With support for up to 192GB of DDR5 RAM, a PCIe Gen 5 x16 slot for a dedicated GPU, and high-speed NVMe storage, the system meets the hardware requirements for professional-grade video editing and rendering tasks.
What is the power supply rating?
The system includes an integrated 500W 80 Plus Gold power supply, which is designed to handle the power demands of the supported 125W TDP processors and additional expansion cards.
