Electronic equipment failing MIL-STD-461G electromagnetic interference (EMI) testing can now achieve compliance without extensive board-level redesigns by utilizing connector-level filter inserts. According to Quell, these EESeal® inserts allow engineers to target specific emissions and susceptibility issues directly at the connector interface, significantly reducing the time and costs associated with traditional redesign cycles and requalification.
Why do MIL-STD-461G failures trigger expensive redesigns?
MIL-STD-461G serves as a rigorous standard for electromagnetic compatibility (EMC) in aerospace and defence, requiring systems to operate reliably in dense electromagnetic environments. When a prototype fails, conventional industry practice often demands a full-scale redesign of circuit boards, internal shielding, or grounding strategies. According to Quell, these traditional corrective measures force new engineering cycles, inflate validation costs, and jeopardize project timelines. Damian Semple, Franchise Marketing Manager at Quell, notes that these failures often have a “disproportionate impact” on program schedules because the required rework ripples through multiple phases of the validation process.
How do connector-level filter inserts work?

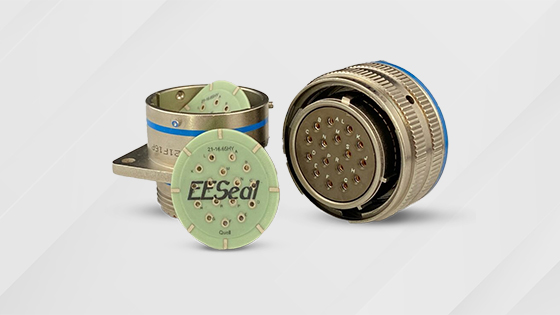

Filter inserts provide a way to address EMI issues by integrating miniaturized filtering electronics directly into the connector hardware. Unlike board-level modifications that require soldering or mechanical changes, Quell states that their silicone-based EESeal inserts slide over existing connector pins. This “plug-and-play” approach allows for rapid deployment—often within 24 to 48 hours—directly at the test center. By customizing the filter characteristics to match the specific frequencies identified during compliance testing, engineers can attenuate both conducted and radiated emissions without altering the underlying electronics design.
What is the impact of retrofitting versus redesigning?
The choice between a full redesign and a retrofit depends on the stage of the product lifecycle and the severity of the EMI failure. Traditionally, engineers viewed retrofits as temporary “band-aid” solutions. However, Quell positions connector-level filtering as a permanent production-grade solution suitable for long-term aerospace and defense deployments. The primary trade-off is speed; while a board redesign provides a clean-sheet solution, it introduces uncertainty regarding certification timelines. In contrast, connector-level mitigation provides a predictable route to compliance, effectively bypassing the need for extensive requalification activities.
Frequently Asked Questions
- Do these filter inserts require specialized tools for installation? No, Quell states that the inserts are designed for installation without tools or mechanical modification to the existing connector.
- Can these inserts be used for permanent production? Yes, the manufacturer describes the technology as a permanent solution suitable for the long-term reliability requirements of defence and aerospace programmes.
- How quickly can custom EMI filters be delivered? According to Quell, custom-engineered inserts can be delivered within 24–48 hours to minimize downtime during qualification.
- What is the most common cause of MIL-STD-461G failure? Quell identifies cable-induced interference and grounding/bonding deficiencies as frequent sources of compliance issues.
