Researchers at Tohoku University have embedded nitrogen vacancy (NV) centers directly into single-crystal diamond micro-electro-mechanical systems (MEMS) cantilevers to measure real-time mechanical stress, according to a study published in Functional Diamond. The integration allows the physical structure of the MEMS device to function simultaneously as its own quantum sensor, removing the need for separate external diagnostic components.
How Diamond Quantum Sensors Track Nanoscale Stress

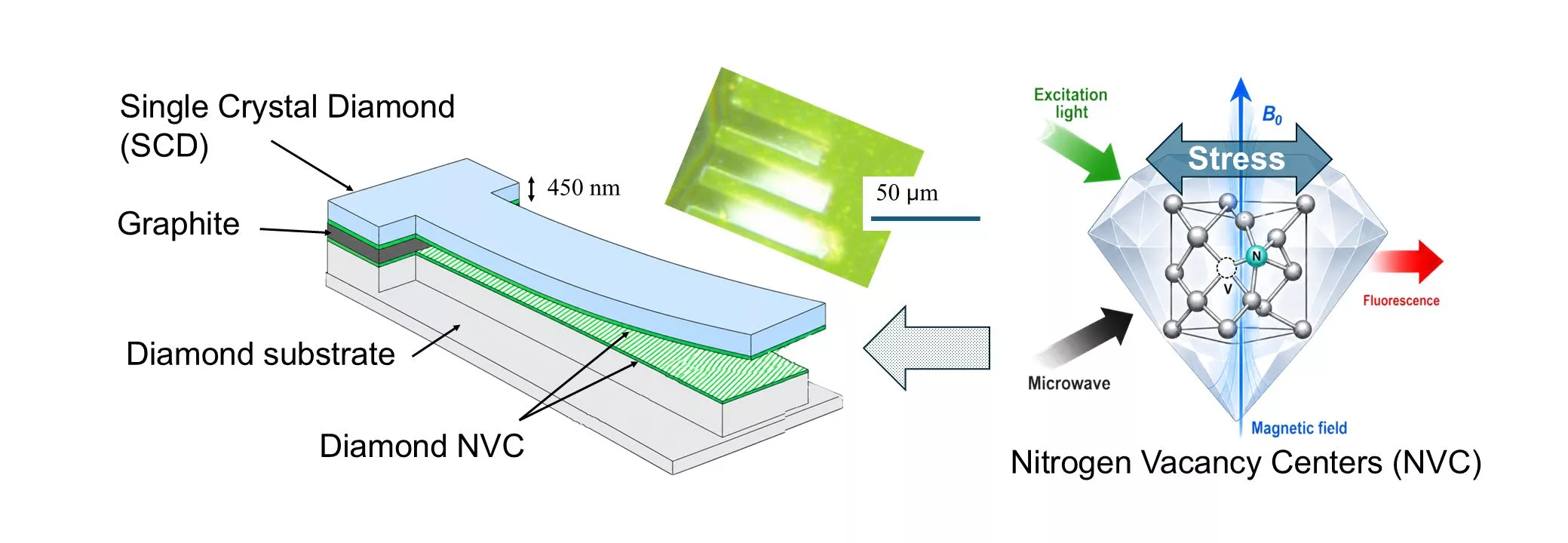

Micro-electro-mechanical systems power everyday items like microphones, biosensors, and accelerometers. Yet these tiny mechanical structures are notoriously vulnerable to physical stress, and attaching traditional external sensors at such small scales is nearly impossible. According to the Tohoku University research team, embedding NV centers—which are atomic-scale defects in diamond—directly into the MEMS cantilever solves this limitation.
When illuminated by a green laser, NV centers glow, and applying microwaves alters their spin states. Changes in temperature, magnetic fields, and mechanical stress all shift the resonance frequency of these defects. By utilizing optically detected magnetic resonance (ODMR), the researchers tracked both static and dynamic stress across the cantilever in real time, demonstrating that the embedded sensors respond reliably to both bending and vibrations.
Pro Tip: Integrating quantum components directly into the fabrication process of mechanical devices removes the overhead of external instrumentation, allowing for significantly higher efficiency in nanoscale engineering.
Bridging Quantum Physics and Practical Engineering Applications
According to lead researcher Masaya Toda, the defining achievement of the work is that the quantum sensor forms as an inherent part of the standard MEMS fabrication workflow. Fusing the mechanical structure and the sensing function into a single diamond device eliminates extra hardware. This streamlined approach enables smaller, more efficient engineering layouts while establishing a new platform to study the fundamental interactions between mechanical deformation and quantum spin states.
Looking ahead, compact and highly integrated diamond quantum devices could serve as the foundation for next-generation technologies. According to the study authors, potential future use cases include ultra-sensitive biosensors and advanced quantum-enhanced navigation systems.
Exploring New Frontiers in Magnetic Materials
In separate recent research published in Physical Review Letters, physicists at the University at Buffalo proposed a quantum sensing approach using diamond magnetic defects to identify altermagnets—a recently discovered third class of magnets that combines properties of both ferromagnets and antiferromagnets.
“This could be the first building block of a new generation of experiments that determine whether a material is an altermagnet,” says Jamir Marino, PhD, assistant professor in the University at Buffalo Department of Physics, noting that confirming these behaviors could transform information transport.
Did You Know? Altermagnets were first conceptualized in 2019 when researchers in Mainz observed that ruthenium dioxide exhibited no overall magnetization like an antiferromagnet, yet behaved like a ferromagnet when exposed to an electric current.
Frequently Asked Questions
What is a nitrogen vacancy (NV) center in diamond?
An NV center is an atomic-scale defect within a diamond crystal lattice that functions as a sensitive quantum sensor. When exposed to a green laser and microwaves, its optical and magnetic properties shift in response to changes in surrounding magnetic fields, temperature, and mechanical stress.
How do integrated MEMS cantilevers measure stress without external sensors?
By embedding NV centers directly into the diamond structure during fabrication, the mechanical cantilever itself acts as the sensor. Researchers monitor these defects using optically detected magnetic resonance (ODMR) to track real-time physical bending and vibrations.
What makes altermagnets different from traditional magnets?
Altermagnets have an overall magnetic cancellation like antiferromagnets, but their internal atomic arrangement causes electrons to behave with the easily controllable electronic properties typical of ferromagnets.
