Integrating Subsea Telemetry: The Impact Subsea Shift

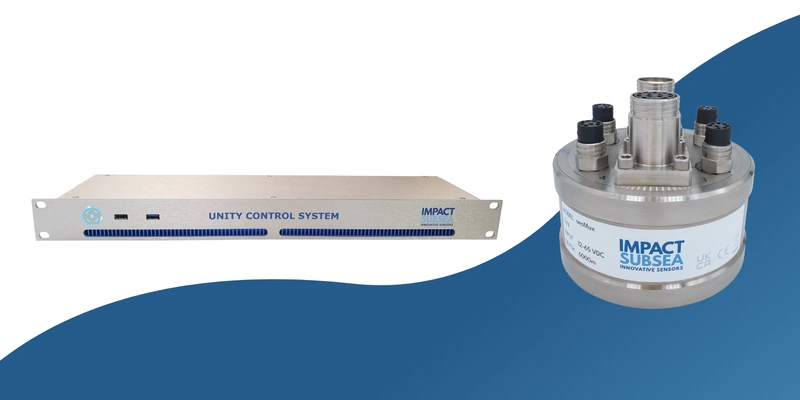

Impact Subsea has launched the Unity Topside Control System and the seaMux Subsea Multiplexer to standardize data management for underwater vehicles. The hardware suite enables operators to consolidate sensor integration, telemetry, and power distribution for subsea operations at depths reaching 6,000 meters. These systems support both proprietary Impact Subsea sensors and third-party instrumentation through transparent port bridging.
How does the seaMux Subsea Multiplexer function?
The seaMux is a titanium-housed multiplexer engineered for flexibility in harsh underwater environments. According to Impact Subsea, the unit features four communication ports that support Ethernet, RS232, and RS485 protocols. Operators can scale the system by daisy-chaining multiple units or using RS485 multidrop configurations to connect several serial sensors to a single port.
Power management is integrated directly into the hardware. Each port provides a software-controllable 24VDC output with real-time power monitoring. For data transmission to the surface, the system utilizes either standard Ethernet or high-bandwidth VDSL telemetry over a single screened twisted pair.
What role does the Unity Topside Control System play?
The Unity Topside Control System acts as the primary interface between the surface operator and the subsea sensor suite. Housed in a 1U, 19-inch rack-mountable chassis, the system runs Impact Subsea’s seaView software. This interface allows for real-time logging, data management, and monitoring of all connected subsea hardware.
The Unity system mirrors the seaMux’s connectivity, offering four communication ports that handle RS232, RS485, or Ethernet. By providing software-controllable 24VDC power at the surface, the Unity unit ensures that topside equipment can be managed with the same precision as the subsea instrumentation.
Why is port bridging important for sensor interoperability?
The combined system introduces “port bridging,” a feature that creates a direct, transparent link between a subsea port and a topside port. Impact Subsea states that this capability allows for the integration of third-party sensors alongside their own equipment. Because the link is transparent, the system can function as a standalone hub for entirely third-party sensor suites, providing flexibility for operators who manage diverse underwater vehicle fleets.
Frequently Asked Questions
What is the maximum depth rating for the seaMux?
The seaMux subsea multiplexer is rated for operations at depths up to 6,000 meters.
Can I use third-party sensors with the Unity and seaMux system?
Yes. The port bridging feature allows for the transparent throughput of data, enabling the use of both Impact Subsea sensors and third-party instrumentation.
What communication protocols does the system support?
The system supports Ethernet, RS232, and RS485 protocols across its communication ports.
How is data transmitted to the surface?
Data transmission is handled via standard Ethernet or high-bandwidth VDSL telemetry over a single screened twisted pair.
