Theory Audio Design is now shipping five new amplified loudspeaker controllers, headlined by the 8-channel DLC-1500.8d model delivering 6000W of power within a 2U chassis, according to company announcements.
DLC-1500.8d Technical Specifications and Capabilities
The new DLC-1500.8d controller is capable of delivering 1500W into 4 or 8 ohms from any channel pair, or 800W into 2 or 4 ohms with all channels driven, according to product specifications. The unit comes equipped with upgraded high-current output Euroblock connectors that accept up to 10-gauge wire. It also provides 4 channels of Dante and AES67 audio-over-IP digital I/O.
According to Theory Audio Design, the hardware can drive up to 32 Theory 16-ohm loudspeakers in Lo-Z mode, or over 300 direct loudspeakers in Hi-Z mode. Installers can configure the DLC-1500.8d using an on-board web interface accessible via wired Ethernet or an integrated Wi-Fi access point. The platform includes DSP objects for matrix mixing, priority audio routing, ducking, parametric EQ, delay, gain, and limiting. Full API support and integration modules are available for AMX, Control4, Crestron, Crestron Home, ELAN, Josh.ai, Q-SYS, RTI, and Symetrix.
Pro Tip: When deploying the DLC-1500.8d in high-density installations, utilize the on-board Wi-Fi access point for rapid mobile configuration and real-time DSP adjustments without needing a direct physical network drop at the rack.
New PLC Series Power Amplifiers

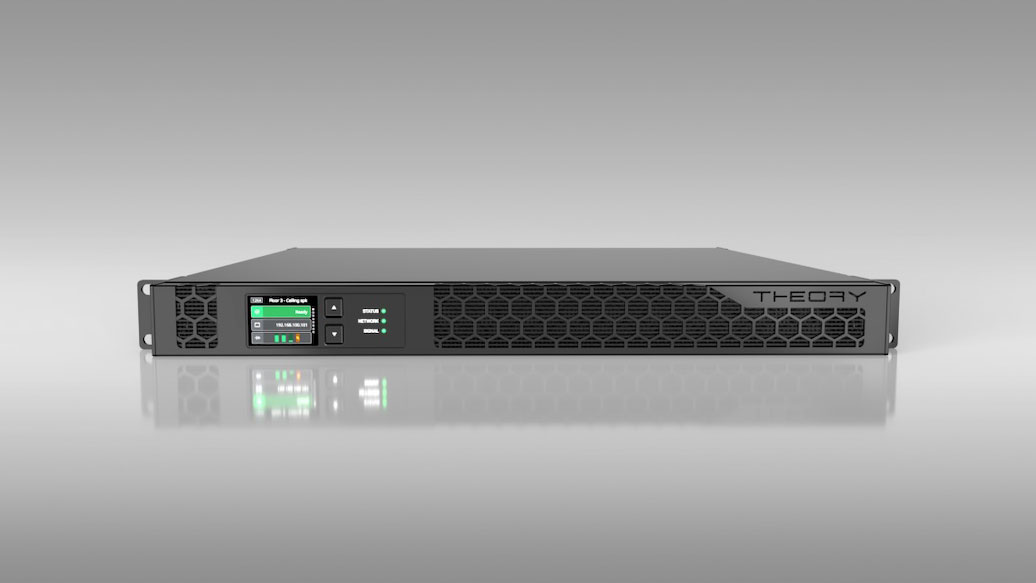

Alongside the DLC update, Theory Audio Design launched the brand-new PLC series. This lineup consists of two 8-channel models and two 4-channel models, each built into a 17-pound, 1U chassis. The architecture utilizes Powersoft’s patented Class-D amplification topologies, SmartRail energy-management power supplies, Power Factor Correction, and advanced DSP, according to the manufacturer.
Each PLC unit features Dante and AES67 audio-over-IP digital I/O through three configurable network ports, which include one PoE port. According to product documentation, administrators can configure each PLC port for audio-only, control-only, or dual operation. The PLC-4K8 and PLC-8K8 provide 8 channels of digital I/O and deliver 4,000W and 8,000W of power respectively. Meanwhile, the PLC-9K4 and PLC-16K4 offer 4 channels of digital I/O and provide 9,000W and 16,000W respectively. Theory Audio Design confirms that all five new loudspeaker controller models are available now.
Did you know? The new PLC series packs up to 16,000W of amplification into a lightweight 17-pound, 1U chassis, utilizing Powersoft’s SmartRail energy-management power supplies to maintain high efficiency under heavy loads.
Frequently Asked Questions
What is the power output of the new DLC-1500.8d?
According to Theory Audio Design, the 8-channel DLC-1500.8d delivers 6000W total, providing 1500W into 4 or 8 ohms from any channel pair, or 800W into 2 or 4 ohms with all channels driven.
What network audio protocols do the new controllers support?
All five new models support Dante and AES67 audio-over-IP digital I/O for flexible network integration.
How many loudspeakers can the DLC-1500.8d drive?
According to the manufacturer specifications, the DLC-1500.8d can drive up to 32 Theory 16-ohm loudspeakers in Lo-Z mode or over 300 direct loudspeakers in Hi-Z mode.
What control platforms are compatible with the DLC Series?
The DLC Series provides full API support and dedicated modules for AMX, Control4, Crestron, Crestron Home, ELAN, Josh.ai, Q-SYS, RTI, and Symetrix.
